Rock Lights for a Jeep Wrangler: What Actually Matters
Search for rock lights for a Jeep Wrangler and you will find plenty of kits with Jeep on the box and very little explanation of what is actually different about putting them on one. The honest answer is that the hardware is not different. What is different is the vehicle: a Wrangler is short, it gets wet, it gets scraped, and half the time it is missing its doors. Those four things change the decisions, not the parts.
Do rock lights fit a Wrangler
Yes, and it is worth understanding why rather than taking it on trust. A rock light is a small sealed housing with a mounting tab. It does not bolt into a factory hole and it does not plug into a factory connector. It mounts to whatever flat metal you choose and it wires back to a harness you route yourself.
That means fitment is not a question anyone can answer for you with a part number. What you are actually deciding is how many rock lights to run, how to attach them, and where the wire goes. Those answers do change between a Wrangler and a full size pickup, which is what the rest of this covers. If you are on a long wheelbase truck instead, the equivalent piece is rock lights for a Ram 1500.
Four is often the right answer on a short wheelbase
On a full size crew cab, four rock lights in the wheel wells leaves a long dark stretch along the side of the vehicle, which is why eight is the usual recommendation there. A two door Wrangler does not have that problem. The distance between the front and rear wheels is short enough that four well placed rock lights throw light that meets in the middle.
Four is the honest starting point on a short wheelbase rig, and it is a genuine saving rather than a compromise. A four door with the longer wheelbase sits between the two cases: four will light it, six or eight will fill the middle properly, and if you are undecided the higher number is the one nobody regrets. The general reasoning on counts is in how many rock lights you need.
Where they go on a Wrangler

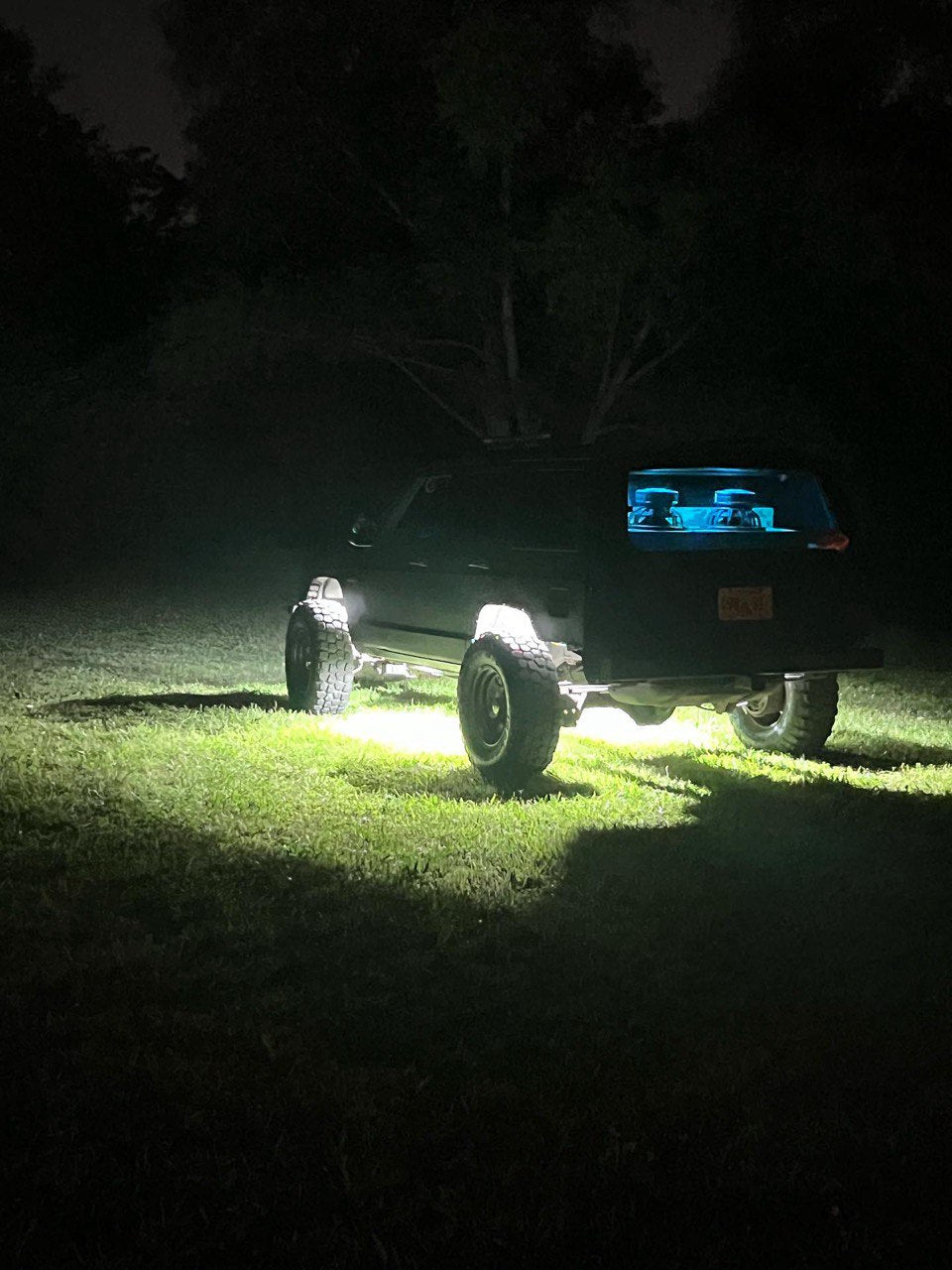

Inside the wheel wells is the obvious position and the one that produces the effect people picture. Angle each rock light down and slightly outward so the light falls on the ground and the tyre rather than straight into the inner fender.
The rocker area is the second run, and on a Wrangler it is more useful than on a pickup because the body sides are short and vertical. Rock lights mounted along the rockers throw sideways from under the tub and fill the space between the wheels. If you run rock sliders, the underside of the slider is flat metal that is already there and already protected, which makes it a natural mounting surface.
Under the tub and near the rear axle is the third run, and it is usually a second order rather than a first one. Whatever you choose, mount the rock light where something solid is protecting it from the direction the rocks come from. A light tucked behind a slider survives things a light hanging below the frame does not.
Magnets or bolts on a rig that sees rocks
Both work, and the useful way to choose is how they fail. Bolt on is permanent. Every rock light ships with two bolts and nuts, you drill once, and the light is not going anywhere. On a vehicle that is actually driven on trails, this is the answer. A magnet that lets go on a rock ledge is a lost light and a wire dragging under the vehicle.
Magnetic mounts start at $19.99 for a set of four, which covers four rock lights, and each mount carries two magnets, so a set of four is eight magnets in total. The set includes countersunk screws, lock nuts and washers. They are the right call on a Wrangler that is a daily driver, on a lease, or where you want to test a position before you commit to a hole. They hold well on clean flat steel and much less well on a surface already caked in road film, so prep matters more than people expect. The full comparison is in the magnetic mount guide and in magnetic versus bolt on.
A reasonable middle path is magnets while you work out placement over a few weeks, then bolts once you know exactly where each rock light belongs. The bolt hardware is in the box either way.
Water crossings, mud and pressure washing
This is where a Wrangler differs most from a truck that never leaves pavement. Our rock lights are IP68, and on a rock light that rating means fully submersible rather than splash resistant, so a water crossing is not what ends them.
What ends them is the wiring. Connectors that were never greased, and wire that has been rubbing on something since the day it went in. Grease every connector before you seat it, and secure the wire on both sides of anywhere two parts of the vehicle move relative to each other. Suspension articulation on a Wrangler is significant, and a wire that is exactly long enough at ride height is short at full droop. What actually kills a rock light goes through the failure modes in order.
Which pod size to run
Three sizes are in the range. A set of four 9 LED rock lights is $54 and is the compact option, which suits tight mounting positions behind sliders and inside fender wells. A set of four 24 LED is $120 and is where most builds land. A set of four 36 LED is $180 for the largest housing in the range.
Physical size is the deciding factor as much as anything, because on a Wrangler you are often mounting to a surface with limited clearance. Measure the space before you pick. The sizes are compared properly in 9, 24 or 36 LED.
Wiring when the doors and top come off
On a pickup you can hide a switch wire behind trim and forget about it. On a Wrangler, panels come off, the top comes off, and anything you routed through a door is a problem the first time that door is on the garage floor.
Route everything below the tub and into the engine bay, and keep the switching wireless. The 30A harness at $55 includes the relay, switch and fuse, and its wireless remote handles on and off plus six strobe options, which means no hole in a dash and no wire crossing a removable panel. One harness covers a set of rock lights, a set of wheel lights, or both on one vehicle.
Work out the run lengths before you order, not after the vehicle is on stands. Planning your wire run covers how to measure the real path, and the 50 foot two conductor spool at $35 lets you cut each run to the length your routing actually needs.
Before you order
Settle four things in this order. How many rock lights, which for most two door Wranglers is four and for a four door is four to eight. Mounting, which on a trail rig is bolts and on a daily driver can be magnets. Pod size, decided by the clearance at your chosen mounting points. Then wire, measured along the real route.
Colour is worth a thought too if you plan to add other positions later, since mixing colour temperature across a build is the fastest way to make it look unplanned. Where the law sits on running them on a public road in Texas is covered in are rock lights legal in Texas.
Lead times differ by product, so check current lead times before planning a build weekend. The whole rock light range is here, and if you want a recommendation for your specific Wrangler, send the door count and what it actually gets used for to sales@southernlumen.com.
